Integrate Facebook Ads with Databox

Use Databox to track Facebook Ads, monitor goals, analyze metrics, and uncover insights to improve campaign performance.


Availability

All subscription plans



Facebook Ads is a digital advertising platform that enables businesses to reach highly targeted audiences based on interests, demographics, and online behavior. It allows advertisers to control costs while maximizing reach and engagement. The platform provides detailed performance insights, making it easy to track results and adjust campaigns for better outcomes. With its advanced targeting and analytics tools, Facebook Ads helps businesses drive traffic, generate leads, and boost conversions effectively.

Connection

Before you begin

If your credentials don’t include full access to the data source, make sure your access level meets any permission requirements listed in the Specification section of the integration's page in the Metric Library.

Step 1: Add or choose the connection

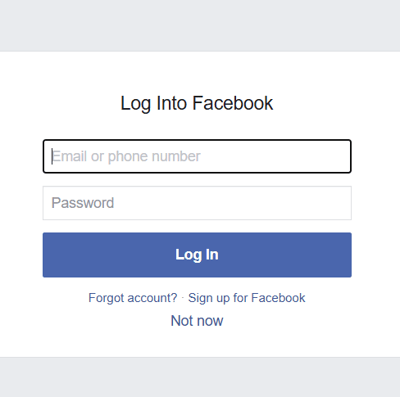

To connect Facebook Ads to your Databox account for the first time, log in using your Facebook credentials.

If you’ve already established a connection, you can reuse it to add new accounts, as long as those accounts are accessible with the existing connection's credentials.

pin Note: If your Facebook Ads credentials are saved in your browser, the account may be selected automatically during the connection process. If this isn’t the account you want to connect, we recommend completing the setup in an Incognito window to avoid automatic login.

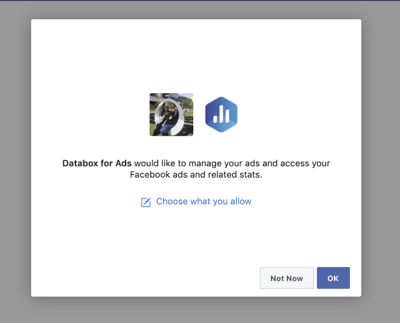

Step 2: Allow Databox to access your data

When you approve the Databox app, you authorize a secure connection to your Facebook Ads account. This allows Databox to access only the reporting data needed to track and visualize your ad performance. No changes are made to your campaigns, and you can revoke access at any time from your Facebook settings.

Step 3: Select the account

Choose the ad account you want to report on. If you manage multiple Facebook Ads accounts, you’ll be prompted to select the specific account you want to connect to Databox.

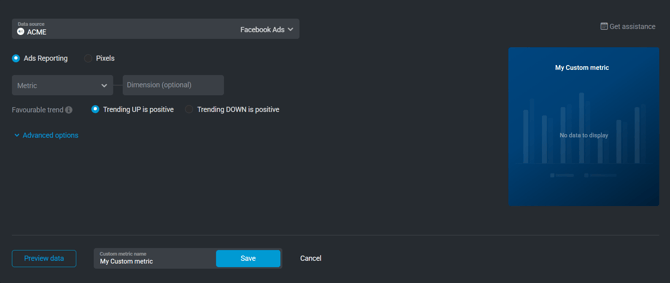

Metric Builder

The Facebook Ads integration allows you to create custom metrics using the metric builder, ideal for visualizing data not included in the basic metrics offered by the integration.



To create a custom metric, start by selecting a metric from the “Metric” selector. Next, customize your metric by optionally adding a dimension and applying one or more filters.

There are two entities available for custom metric creation: Ads Reporting and Pixels.

Ads Reporting

Access standard performance metrics such as Impressions, Clicks, CTR, CPA, ROAS, and more. These metrics can be broken down by dimensions like age, device, and placement, or viewed at the campaign, ad set, or ad level.

You'll also find results-related metrics and conversion tracking. Metrics like Actions and Cost per Action Type will prompt you to select a specific action type (e.g., purchase, lead, add to cart) when creating the metric.

In Facebook Ads: Go to the Ads Manager section.

Pixels

Provides data related to your Facebook Pixel, including events received and any custom conversions you’ve configured.

In Facebook Ads:
Go to the Events Manager section.

Resources

For comprehensive details on metrics, data availability, templates, specifications, usage guidelines, and other key information, refer to the resources listed below.


Metrics & Templates

Technical Details

Behavior & Usage

Notes

Frequently Asked Questions

Why do I need to reconnect my Facebook Ads data sources regularly?

Facebook Ads API uses short-lived access tokens for security. These tokens expire after 60 days or can be revoked if you change your password, update permissions, or if Meta performs a security check. When this happens, you’ll need to reauthenticate to restore access.
