Guide: Using ClickUp with Databox (Custom API Integration)

IN THIS ARTICLE

ClickUp Integration Details

IN THIS SECTION

Overview

ClickUp allows freelancers to send and receive emails while managing their work in one place. The platform allows you to compose and reply directly without going to your email app.

The ClickUp integration is designed for more tech-savvy users, as it syncs data through a Custom API integration. In order to create ClickUp metrics in Databox, you’ll need to use the Metric Builder. Learn more about the basics of Metric Builder for Custom API Integrations here.

 If you need help getting set up with ClickUp, feel free to reach out to our Support Team at help@databox.com.

Integration basics

Integration status Beta
Type of Account access needed Unspecified
Authorization type OAuth2
Available endpoints All
Available requests GET
Needed permissions (scopes) /
Allowed API versions All currently active API versions.
Example: You can use a v1 of an API or v4, as long as they are both still supported. Deprecated APIs normally stop returning data.
Timezone Users timezone
Dynamic date range support No
Pagination support Yes
Type of Pagination supported Page based
Rate Limits Yes
Official documentation
Follow the status of the API on the official changelog  /

How to connect ClickUp to Databox

IN THIS SECTION

How to connect ClickUp to Databox

To connect a ClickUp Account in Databox, go to Data Manager > + New connection. Type ClickUp in the search bar and click on the Connect button. Next, click the green Connect now button.

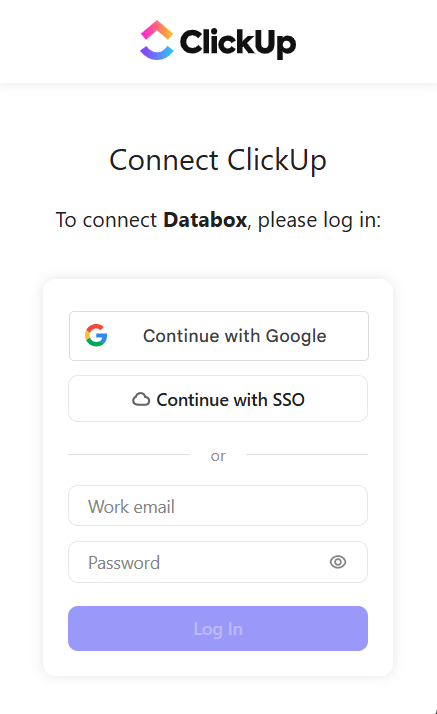

This will open the Authorization window, where you will be prompted to enter your ClickUp login credentials and authorize the Databox app.

What's the maximum amount of historical data initially available when you use a new ClickUp Data Source Metric in Databox?

The amount of historical data available in Databox is dependent on the custom metric setup, API limitations, pagination limitations, and the user’s Databox plan:

  • Custom Metric Setup: When a user creates a metric using an endpoint that supports date time parameters in the API request, those date time parameters determine the amount of historical data that will be pulled for the given metric. You can learn more about the date time parameters here.
  •  API Limitations: APIs may have limits set by the system itself on the amount of historical data that is stored/ can be accessed.
  •  Pagination Limitations: The pagination limit is set to 100 pages, which means that pagination will stop when the 100th page is reached. In cases where the metric is using pagination, of course, the interplay of date time parameters and pagination can have an impact on how much of the historical data the user can pull for a given metric. Learn more here.
  •  Databox Plan: The amount of historical data you're able to access in Databox is dependent on your Databox plan. Learn more here.
Pro Tip: In order to start syncing data for a Metric, you can add it to your Metrics screen, use it in a Scorecard, set a Goal around it, create an Alert for it, or add it to a Databoard. Learn more here.

What time zone does ClickUp data sync in?

Make sure that your connected data source is in the same timezone as your ClickUp account that you connected.
To update the time zone of your connected ClickUp Data Source in Databox follow these steps.

What type of pagination is supported by ClickUp Integration

Some endpoints support a page query parameter. Those endpoints can be paginated. You can find more information regarding pagination corresponding to specific endpoints here.

Learn more about pagination here.

How to use and create ClickUp Metrics

IN THIS SECTION

How to access pre-built ClickUp Metrics

1
   Navigate to Metrics > Metric Library.
2
  In the  Browse by Data Source section, click the Data Source dropdown and search for ClickUp. This will filter out pre-built ClickUp Metrics.

How to create custom ClickUp Metrics

Let’s walk through how to create a Custom Metric for ClickUp.

In order to prepare API requests, you should reference API-specific documentation that can be found in the Databox app through the API Docs link in the top right of the Prepare API Request page. Or, use this direct link.

1
  Navigate to Metrics > Custom Metrics to access the Metric Builder for ClickUp.
2
 Click the green + New Custom Metric button and select your connected ClickUp Account from the Data Source drop-down list.
3
  Open the API documentation for ClickUp to find the endpoint that will return the data needed for the given custom metric you wish to create.
4
  Click the drop-down to select GET or POST as the HTTP Method. This is dependent on the information you found in the API documentation.
5
 The Base URL is already predefined, you will need to copy the missing part of your chosen endpoint to sync the appropriate data.
6
 Add Parameters based on your HTTP Method. Parameters limit the records returned for the API request.
  • If you’re creating a GET request, define the Key and Value pair(s). The API documentation provides information on endpoints for a field/ argument, which will be the Key. The condition (i.e., an ID, true/ false, etc.) will be the Value.
    • If the API documentation for ClickUp states that the Integration supports dynamic date ranges, you will be able to click the calendar icon to add datetime parameters.
  • If you’re creating a POST request, define the relevant JSON body.
    • Click on the calendar icon to add datetime parameters.
    Pro Tip: You can choose multiple Keys and Values for one Custom Metric. You can add an additional Key and Value by clicking on “+”.
7
  You can add Headers that include Key and Value pairs if the API needs this to successfully return data.
8
 If the endpoint supports pagination, we recommend you select the appropriate method using the Pagination Method dropdown.
9
  Once you have the basic setup, click on the green Continue button. You will be directed to the Select value step.
10
  In the Select value step, select a property that includes the metric value you'd like to track in your Custom Metric. A metric value must be purely numeric.
11
 Once you have selected the value, click on the green Continue button.
12
 The Segment by dimension step is optional. This step will be taken into account only when you are trying to create a dimensional metric. If you'd like to segment your metric by multiple dimensions, choose one to complete during this set up, then begin again and select a different dimension until each desired metric is created.

  • To skip this step, select None.

13
 The Select date step is optional as well.
  • Use current time of storing data (Dynamic): Select this option if you don’t want to select a date field
  • Use a field from response (optional): Select this if you want to select a date in order to see your data in predefined intervals.
14
  In the Preview & Customize step, you can see the JSONata expression that has been created based on your selection of properties.

  • You can customize the JSONata expression (optional) in the right editor panel.

15
 To continue, click on the Preview data button to validate the expression and returned data.
16
  Once you have previewed your data, click on the green Continue button to proceed to the last step of setting up your Custom Metric.
17
 In the Describe metric step, you can set up the following:
  • Name your metric: Enter a name for your custom metric
  • Data Aggregation: These selections determine how your data is handled. This especially impacts the way data is grouped and displayed for longer Date Ranges. Learn more here.
  • Favourable trend: You can select when "Trending UP is positive" or "Trending DOWN is positive," since some metrics are better (positive) when the value is lower (like Bounce rate, Churn rate, etc.). This will affect how comparison values and goal comparisons are calculated and calculated.
18
 Once you completed the Describe metric step, click the green Continue button to finish the Custom metric setup.

Additional Information

IN THIS SECTION

Integration Limitations

  • Databox limits the use of its integrations to GET requests. This is because our integration only reads your data.
  • Rate limits: The Rate limits set by ClickUp depend on which plan the user is subscribed to on ClickUp. Learn more about Rate limits here.
      • WARNING: If specific scopes of an integration allow you to create, change, delete or manipulate data in any other way, using such API calls can result in unexpected behavior. Databox is in no way liable for such API calls.
